ET82099x
Contact
General Description

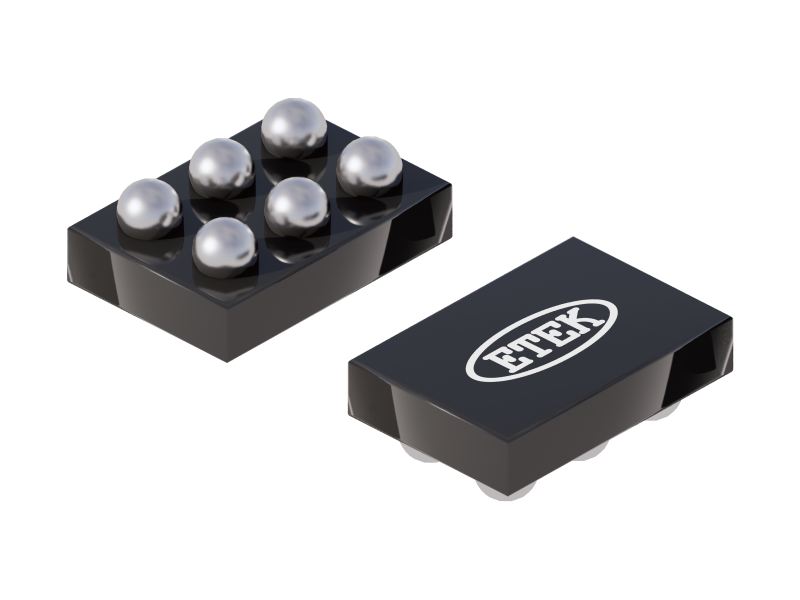

The ET82099x device is a synchronous boost converter with less than 1µA ultra-low quiescent current. It is designed for products powered by an alkaline battery, lithium battery or rechargeable Li-Ion battery. ET82099x is available in a small WCSP6 package
Specification
Sample
Features
- 0.7V to 5.5V Input Voltage Range
- Fixed Output Voltage Versions
- 250nA Ultra-Low IQ into VIN Pin
- Synchronous Rectification
- Up to 93% Efficiency
- Fixed Output Voltage Versions 2.5V 3.0V 3.3V 3.6V 4.5V 5.0V
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET82099x Datasheet | 2025-11-15 |
