ET8131
Contact
General Description

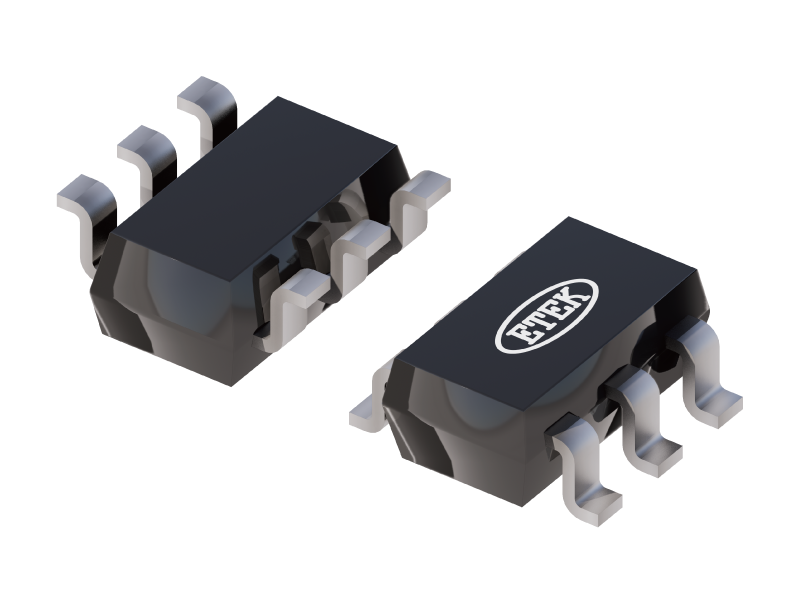

The ET8131 is a high-efficiency synchronous step-down DC-DC converter with ACOT control architecture. It provides 3A continuous output current with excellent transient response and high efficiency. ET8131 is available in a SOT23-6 package
Specification
Sample
Features
- 4.5V to 17V Input Voltage Range
- 3A Continuous Output
- Integrated 90mΩ and 50mΩ FET FET
- FSW 580kHz
- VFB 0.76V
- Synchronous Rectification
- ACOT Control Architecture
- PFM mode during light load operation
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET8131 Datasheet | 2025-12-07 |
