ET8134M
Contact
General Description

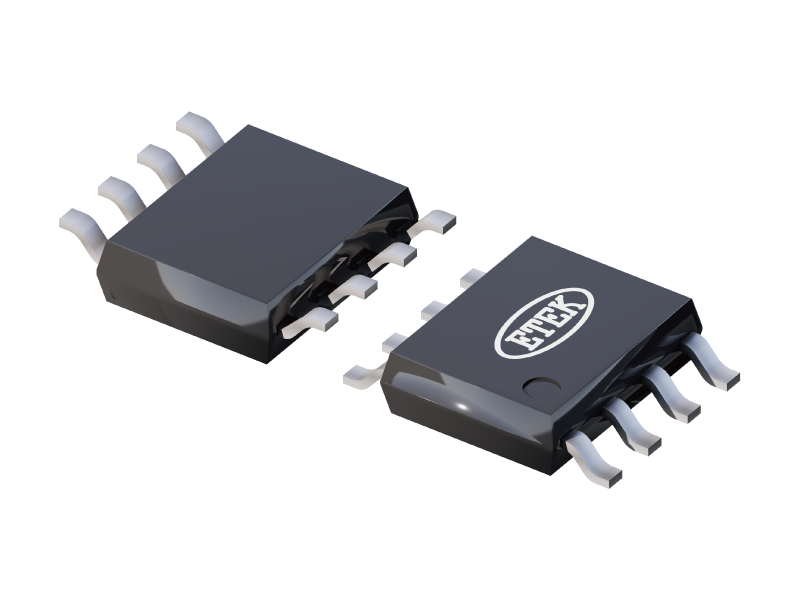

The ETQ8134M is a high-efficiency synchronous step-down DC-DC converter with ACOT control architecture. It provides 3A continuous output current with excellent transient response and high efficiency. ETQ8134M is available in a a ESOP8 package
Specification
Sample
Features
- 4.5V to 38V Input Voltage Range
- 3A Converters Integrated 130mΩ and 100mΩ FET
- FSW 600kHz
- VFB 0.923V
- Synchronous Rectification
- ACOT Control Architecture
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET8134M Datasheet | 2025-12-07 |
