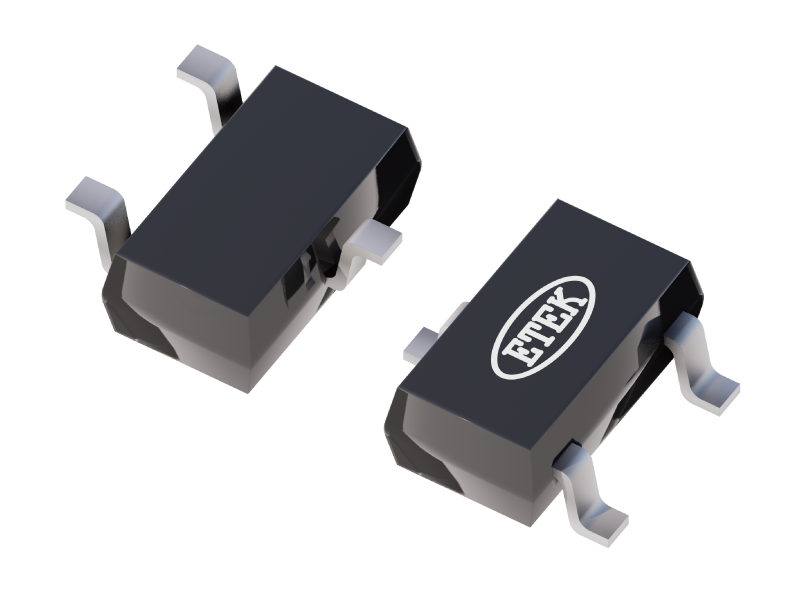

ET7H1XX
Contact
General Description
ET7H1XX series are a 1µA quiescent current and 300mA output LDO, It uses an advanced CMOS process and a PMOSFET pass device to achieve low noise, fast start-up and excellent output accuracy. The dynamic transient boost feature improves device transient response for wireless communication applications. ET7H1XX series are offered SOT89-3, SOT23-5, SOT23-3, DNF4(1×1) packages.
Specification
Sample
Features
- Wide Input Voltage Range from 2.5V to 16V
- Up to 300mA Load Current
- Very Low IQ is 1µA typical
- Fixed Output Voltage:1.2~5.5V@50mV/Step
- Dropout is 600mV typical at 300mA load @VOUT=5.0V
- Short current protection is 120mA
- Excellent line / load regulation
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET7H1XX Datasheet | 2025-11-15 |
