General Description

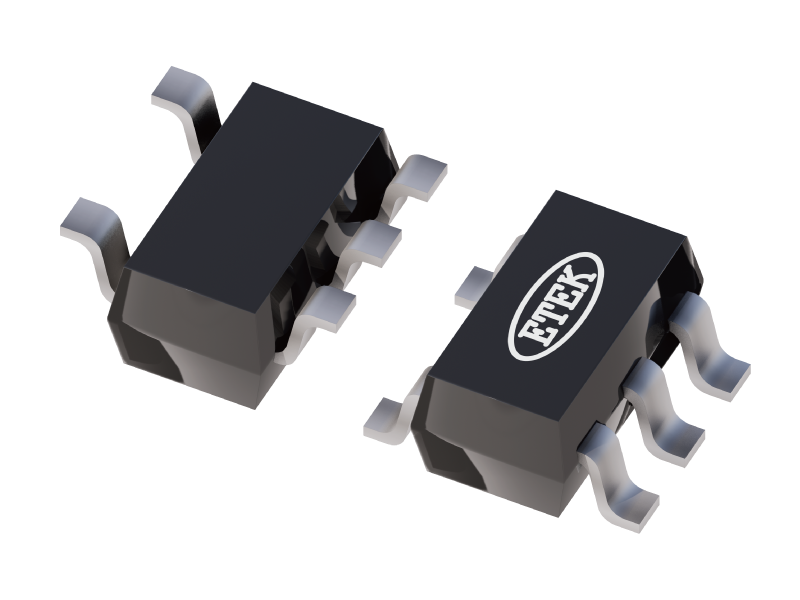

ET7H2XX series are 30µA LDO with 200mA output ability, it uses an advanced CMOS process and a PMOSFET pass device to achieve low noise, fast start-up and excellent output accuracy. The dynamic transient boost feature improves device transient response for wireless communication applications. ET7H2XX series are offered SOT89-3, SOT23-5, SOT23-3, DNF4(1×1) packages
Specification
Sample
Features
- Wide Input Voltage Range From 2.5V to 16V
- Up to 200mA Load Current
- IQ is 30µA Typical
- Dropout is 1000mV at 200mA Load @VOUT=1.2V
- Dropout is 680mV at 200mA Load @VOUT=1.8V
- Short Current Protection is 100mA
- Excellent Load/Line Transient Response
- Line Regulation is 0.01%/V Typical
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET7H2XX Datasheet | 2025-12-07 |
