ET5904A
Contact
General Description

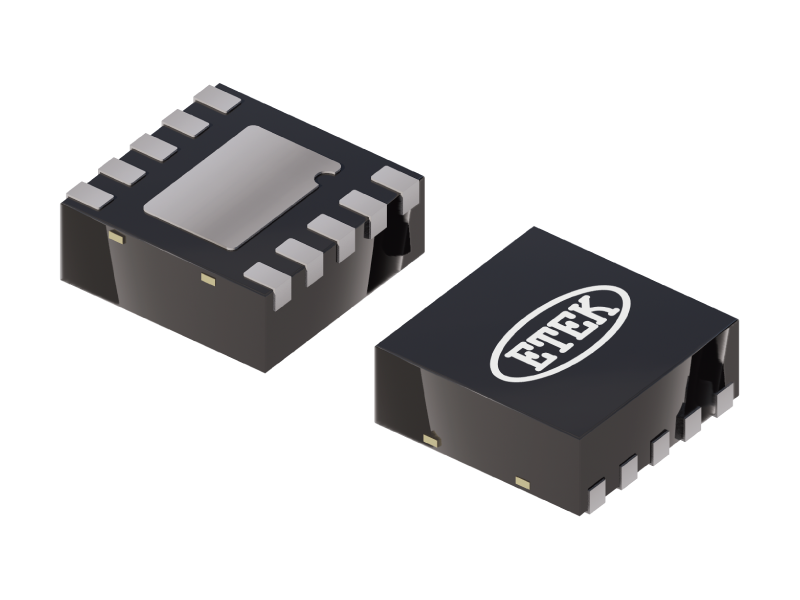

The ET5904A is CMOS-based low dropout, low power linear regulator. It’s a 4-channels integrated LDO with I2C control. LDO1 offer up to 1500mA with NMOS pass transistor, LDO2 offer up to 1000mA with NMOS pass transistor, LDO3/4 offer up to 400mA with PMOS pass transistor. ET5904A include 1MHz high speed I2C interface, the function setting is flexible such as power sequence, output voltage, output discharge, current limit per channel. The chip enable control support EN pin control and I2C control. The ET5904A is available in DFN10 (2×2) package.
Specification
Sample
Features
- DVIN input voltage range from 0.6V to 2.0V
- AVIN input voltage range from 3.0 V to 5.5V
- LDO1/2 output voltage range from 0.6V to 1.8V with step 6mV
- LDO1 output current are up to 1500mA
- LDO2 output current are up to 1000mA
- LDO1 ultra-low dropout are typical 110mV at 1200mA, 1.2V output
- LDO2 ultra-low dropout are typical 105mV at 800mA, 1.2V output
- LDO3/4 output voltage range from 1.2V to 4.3V with step 12.5mV
- LDO3/4 output current range are 400mA
- LDO3/4 ultra-low dropout are typical 120mV at 400mA, 2.8V output
- LDO3/4 built-in inrush current limit at Typ. 250mA for appr.700us period after start-up
- Very low input quiescent current of 85µA typical
- Built-in over-current protection and thermal shutdown circuit
- Built-in auto-discharging circuit (optional)
- Built-in under voltage lock-out
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET5904A Datasheet | 2025-11-15 |
