General Description

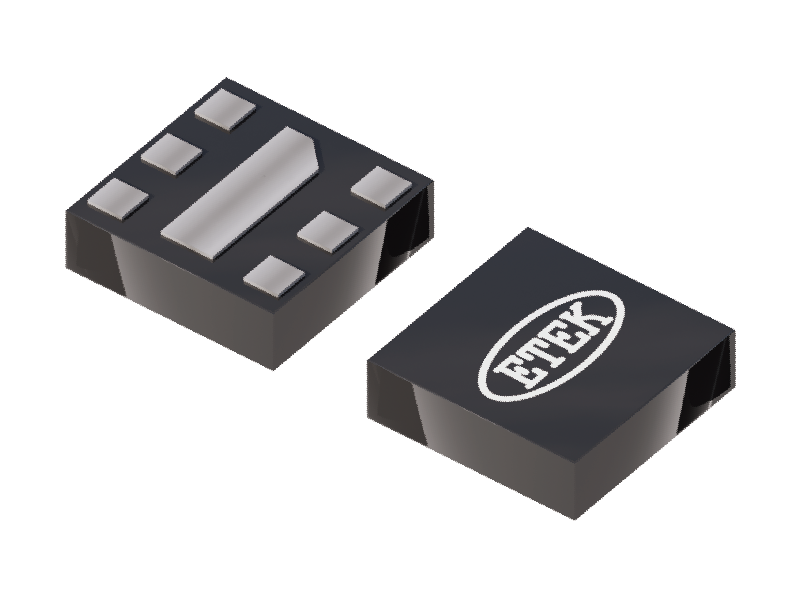

The ET554ADJY1B is a CMOS-based low-dropout, low-power linear regulators, offering 800mA with NMOS pass transistor and a separate bias supply voltage (VBIAS). The device provides very stable, accurate output voltage with low noise, high ripple rejection and low supply current suitable for space constrained, noise sensitive application. The ET554ADJY1B series consist of an accurate voltage-reference block, an error amplifier, a thermal-shutdown circuit, and a current limit circuit. The ET554ADJY1B is available in the DFN6(1.2mm ×1.2mm) package.
Specification
Sample
Features
- Wide VIN Input Voltage Range: 1.0V to 5.5V
- Wide VBIAS Voltage Range: 2.7V to 5.5V
- ADJ Output Voltage Range: 1.0V to 3.6V
- Very Low VBIAS Input Current of Typ. 80µA
- Ultra Low Dropout: Typ. 220mV at 800mA, 1.2V Output, 2.8V Bias
- Built-in Over Current Protection and Thermal Shutdown Circuit
- Built-in Auto-discharging Circuit
- Built-in Under Voltage Lock-out
- Stable with a 2.2μF Ceramic Capacitor
- MSL: Level 1
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET554ADJY1B Datasheet | 2025-11-07 |
