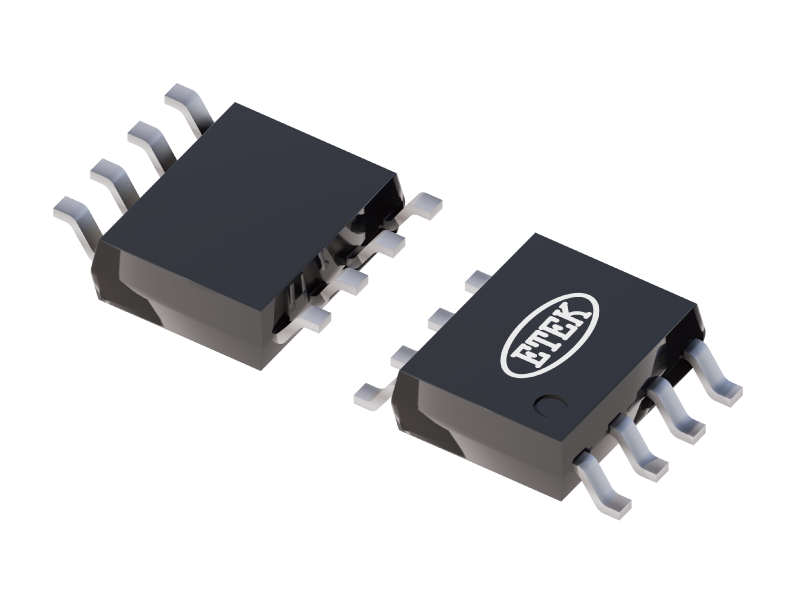

ET5C208M

General Description

The ET5C208M is a CMOS-based very low dropout voltage regulator, offering 3A with NMOS pass transistor and a separate bias supply voltage (VBIAS). The device provides very stable, accurate output voltage with high ripple rejection and excellent full load transient performance. The ET5C208M consist of an accurate 0.8V internal voltage-reference, an error amplifier, an under-voltage lock-out (UVLO) block, an output current limit circuit and a thermal-shutdown circuit. The ET5C208M can set the output voltage through external resistor divider with FB pin. A Power Good pin (PG) is also available. The ET5C208M is offered in ESOP8 package.
