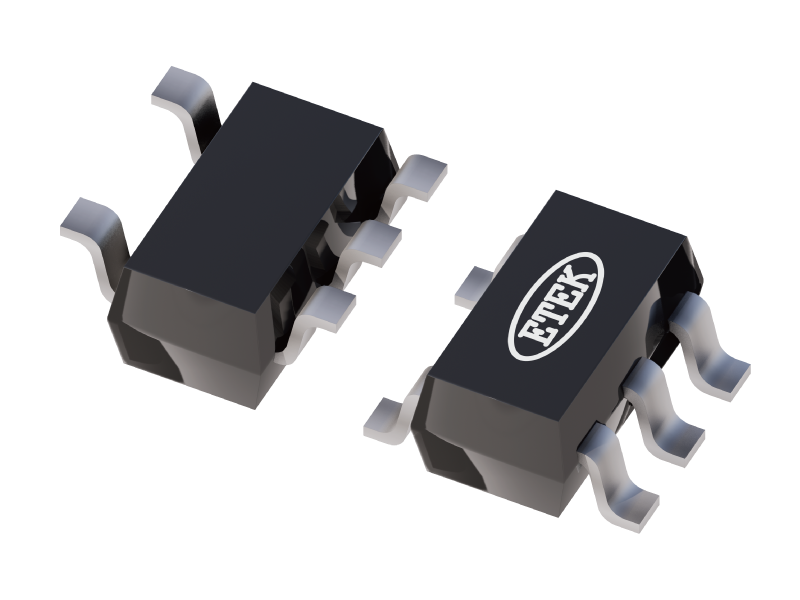

ET516XXBAM
Contact
General Description
The ET516XXBAM is the 300mA LDO with auto discharge function, It uses an advanced CMOS process and a PMOSFET pass device to achieve high power supply rejection ratio (PSRR), low noise, low dropout, low ground current, fast start-up and excellent output accuracy. The ET51533YBAM is stable with a 1.0μF ceramic input and output capacitor, uses a precision voltage reference and feedback loop to achieve high excellent Regulation and transient response.
Specification
Sample
Features
- Wide Input Voltage Range from 1.9V to 5.5V
- Up to 300mA Load Current
- Standard Fixed Output Voltage 3.3V
- Very Low IQ is 45µA typical
- Low Dropout is typical 180mV@3.3V at 300mA Load
- Very High PSRR: 75dB at 1KHz
- Very Low Noise is 60uVrms
- Auto discharge function
- Excellent Load/Line Transient Response
- Automotive AEC-Q100 Grade 2 Qualified
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET516XXBAM Datasheet | 2025-11-10 |
