ET631XX
Contact
General Description

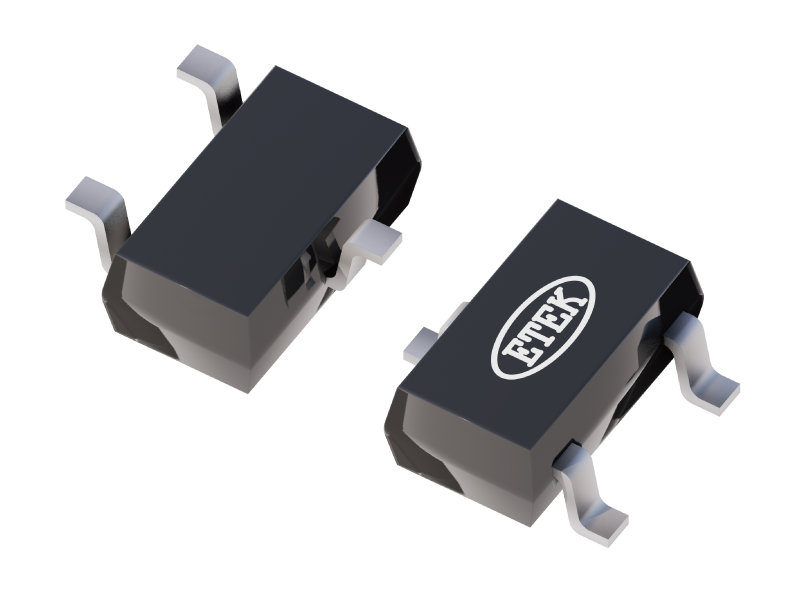

The ET631XX series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of type 0.6uA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1mm DFN4 or SOT23-5 packages.
Specification
Sample
Features
- Operating Input Voltage Range From 2.2V to 5.5V
- Output Voltage Range From 1.1V to 3.6V (0.05V Steps)
- Ultra-Low Quiescent Current Typical 0.6uA
- Low Dropout is Typical 500mV at 300mA@VOUT=1.8V
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1uF
- Over-Current Protection
- Thermal Shutdown Protection
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET631XX Datasheet | 2025-12-07 |
