General Description

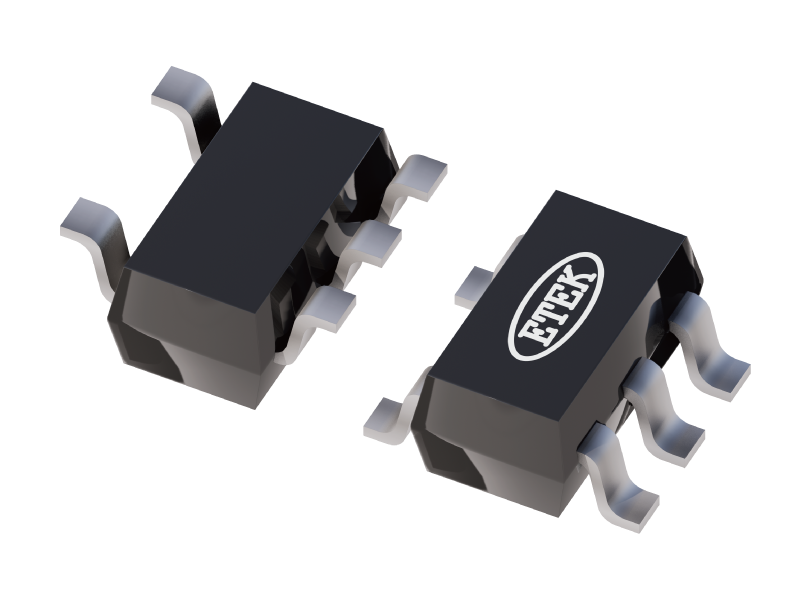

The ET635XX series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of type 0.20μA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The ET635XX family offered in small SOT23-5, DFN4(1mm×1mm) packages.
Specification
Sample
Features
- Operating Input Voltage Range From 2.0V to 5.5V
- Standard Fixed Output Voltage: 1.2V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V and 3.6V etc.
- Ultra-Low Quiescent Current Typical 0.20μA
- Low Dropout is Typical 100mV at 100mA@VOUT=1.8V
- High Output Voltage Accuracy ±2%
- Over-Current Protection
- Short-Current Protection
- Thermal Shutdown Protection
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET635XX Datasheet | 2025-11-15 |
