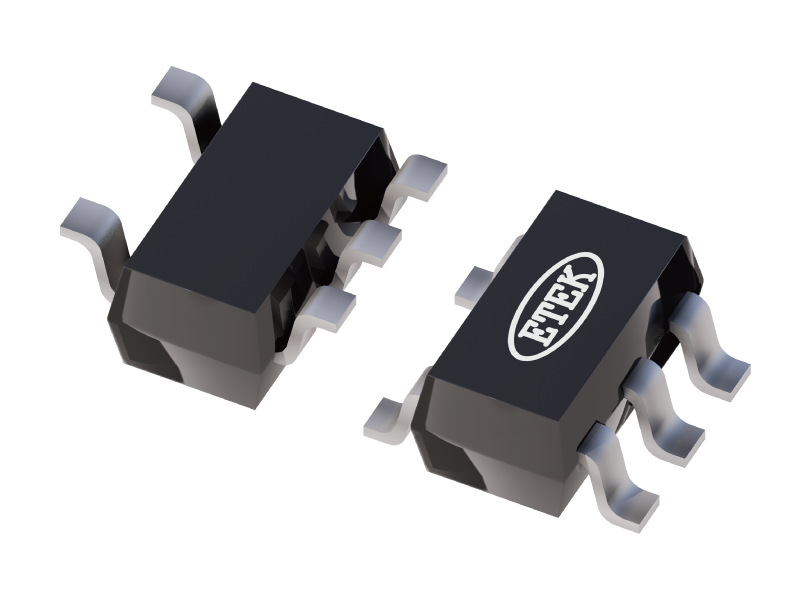

ET20162
Contact
General Description
The ET20162 are current limited P-channel MOSFET power switch designed for high-side load switching applications. This switch operates with inputs ranging from 2.5V to 5.5V. 1A current limit is fixed.
Specification
Sample
Features
- Input Voltage Range: 2.5V to 5.5V
- 1A Fixed Current Limit
- Reverse Current Blocking
- Short-Circuit Response: 2us
- Very Low Quiescent Current: 25μA (Typ)
- Output discharge
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET20162 Datasheet | 2025-12-07 |
