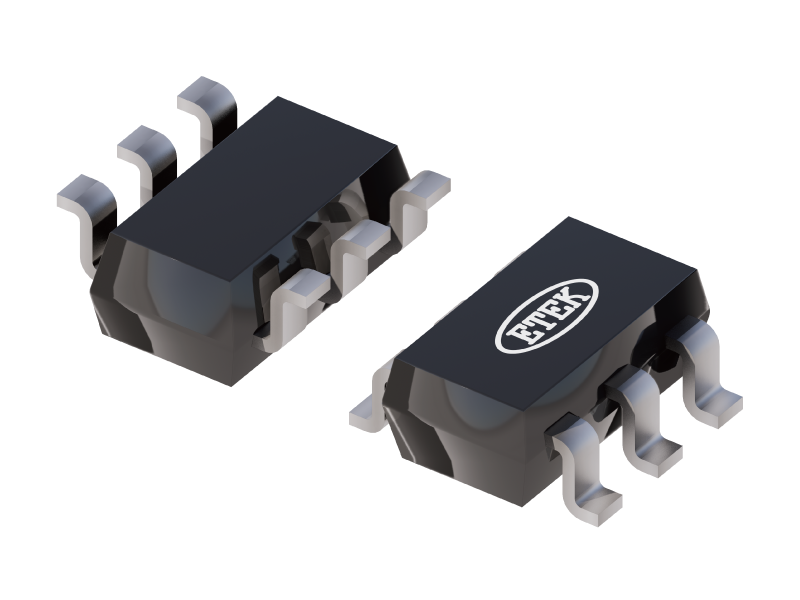

ET20135
Contact
General Description
The ET20135 is a current limit N-Channel MOSFET power switch. It is designed to protect circuitry on the output from transients on the input. It also protects the input from undesired shorts and transients coming on the output.The current limit magnitude is controlled by an external resistor from ILIMIT to GND.
Specification
Sample
Features
- VIN Operating Range: 3.0V to 22V
- Programmable Current Limit and Soft-Start Time
- Short-Circuit Protection
- Typical RON is 57mΩ From Input to Output Power Path
- Over-Current Protection
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET20135 Datasheet | 2025-12-07 |
