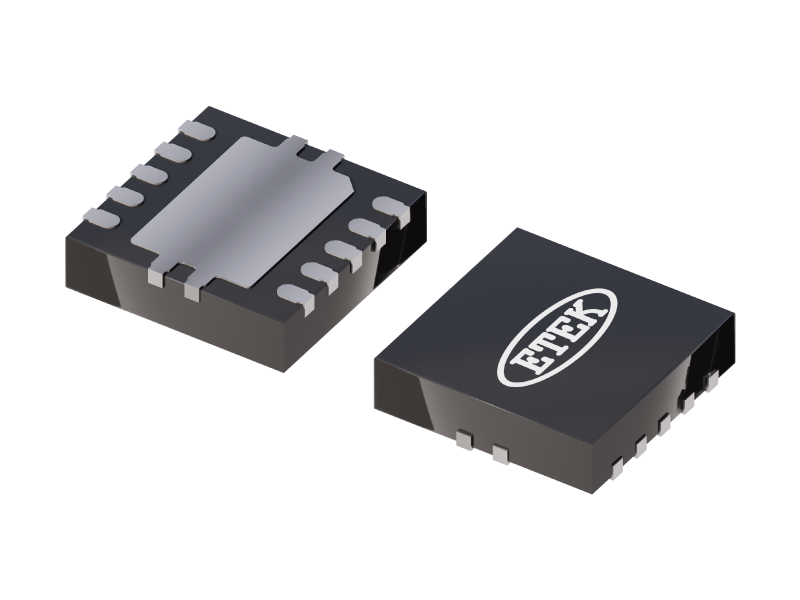

ET20170H
Contact
General Description
The ET20170H is a current limit N-Channel MOSFET power switch. It is designed to protect circuitry on the output from transients on the input. It also protects the input from undesired shorts and transients coming from the output.The current limit magnitude is controlled by an external resistor from ILIMIT to GND.
Specification
Sample
Features
- VIN Operating Range: 4.5V to 18V
- Programmable Current Limit and Soft-Start Time
- Short-Circuit Protection
- Typical RON: 31mΩ From Input to Output Power Path
- Very Low Quiescent Current: 110μA (Typ)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET20170H Datasheet | 2025-12-07 |
