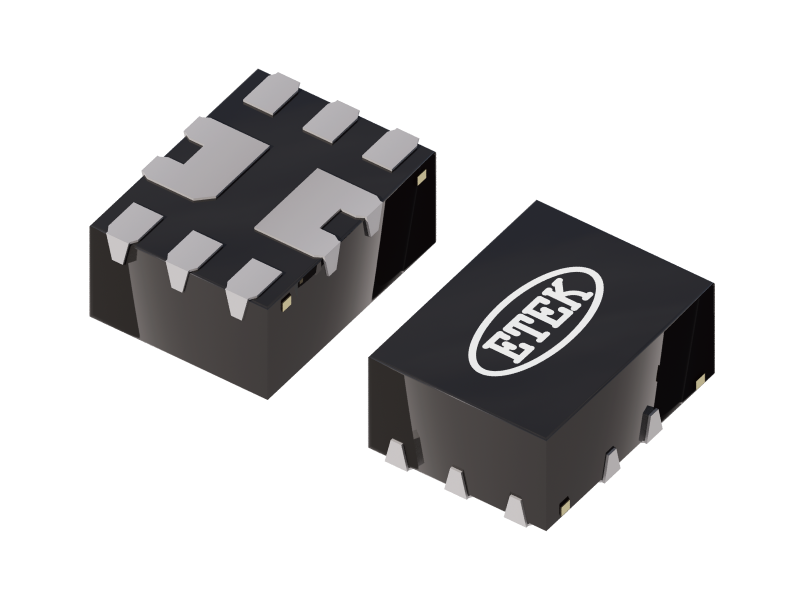

ET20176
Contact
General Description
The ET20176 is a current limit N-Channel MOSFET power switch. It is designed to protect circuitry on the output from transients on the input. It also protects the input from undesired shorts and transients coming from the output. The current limit magnitude is controlled by an external resistor from ILIMIT to GND.
Specification
Sample
Features
- VIN Operating Range: 3.0V to 26V
- Programmable Current Limit and Soft-Start Time
- Selectable Over-Voltage Clamping Voltage
- Fast Output Over-Voltage Protection(OVP) Response
- Current limit and short-circuit Lock-Out
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET20176 Datasheet | 2025-11-15 |
