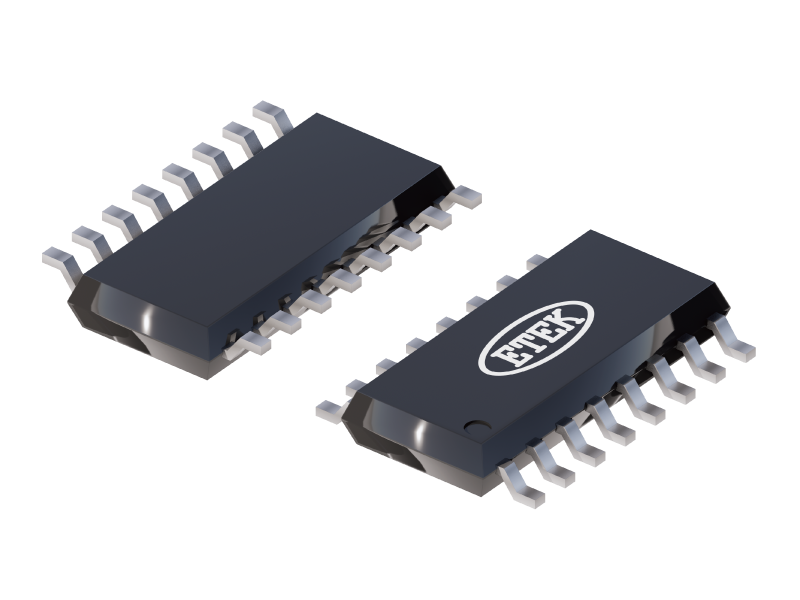

ET74HC04
Contact
Specification
Sample
Features
- Wide Operating Voltage Range of 2V to 6V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption ICC = 20µA Max
- Typical tPD = 8ns @5V
- ±4mA Output Drive @ 5V
- Low Input Current of 1µA Max
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74HC04 Datasheet | 2025-11-07 |
