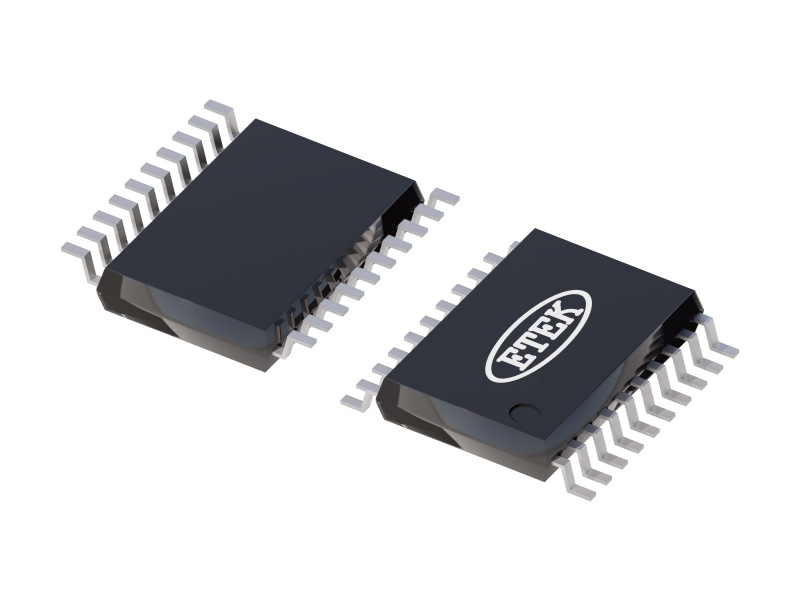

ET74HC245
Contact
General Description
The ET74HC245 is a 3-state non-inverting transceiver that is used for 2-way asynchronous communication between data buses. The device has an active-low pin OE, which is used to place the I/O ports into high-impedance sates. The pin DIR control determines whether data flows from A to B or from B to A.
Specification
Sample
Features
- Designed for 2.0 to 6V VCC Operation
- Outputs Directly Interface to COMS, NMOS, and TTL
- Low Input Current is Typical 0.1uA
- High Noise Immunity Characteristic of CMOS Devices
- 2-way 3 states Output
- These Devices are Pb. Free, Halogen Free/BFR Free and are RoHS Compliant
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74HC245 Datasheet | 2025-12-08 |
