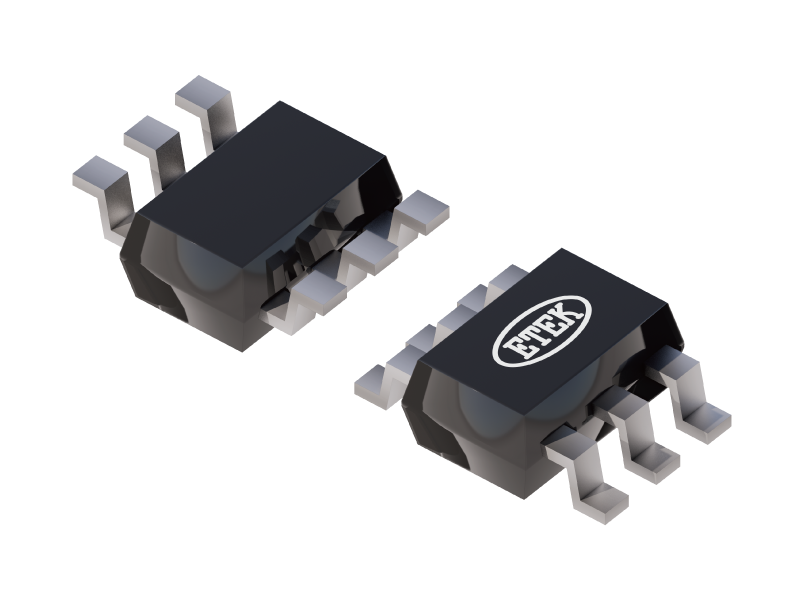

ET74LVC2G14
Contact
General Description
The ET74LVC2G14 is a high-performance dual inverter with schmitt−trigger inputs operating from a 1.65V to 5.5V supply. This device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive. The ET74LVC2G14 is capable of transforming slowly changing input signals into sharply defined, jitter−free output signals. In addition, it has a greater noise margin than conventional inverters. The ET74LVC2G14 has hysteresis between positive−going and negative−going input thresholds (typically 1V) which is determined internally by transistor radios and is essentially insensitive to temperature and supply voltage variations.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- Over−Voltage Tolerant Inputs and Outputs
- 24mA Balanced Output Sink and Source Output Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb−Free and are RoHS Compliant
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC2G14 Datasheet | 2025-11-15 |
