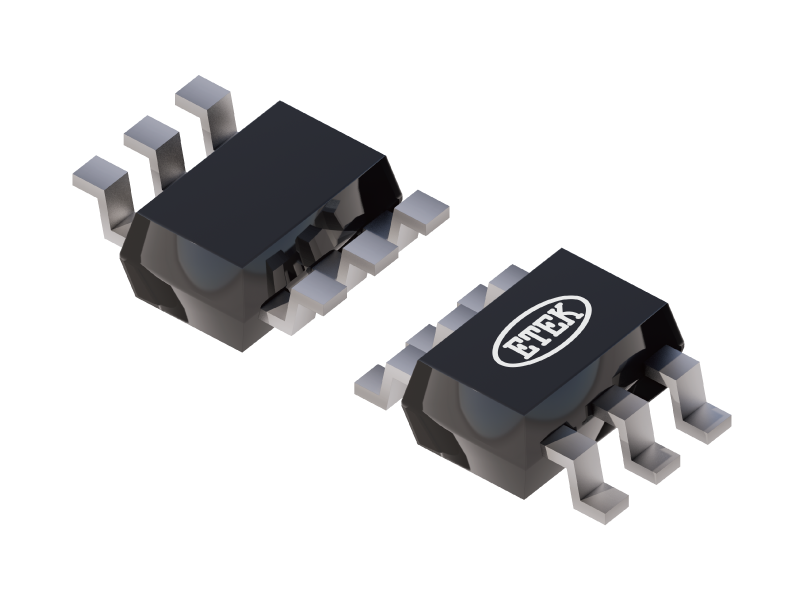

ET74LVC2G17
Contact
General Description
The ET74LVC2G17 is a high-performance dual buffer with schmitt−trigger inputs operating from a 1.65V to 5.5V supply. This device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- Extremely High Speed tPD =2.0ns (typical) at VCC = 5.0V
- Over−Voltage Tolerant Inputs and Outputs
- 24mA Balanced Output Sink and Source Output Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb−Free and are RoHS Compliant
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC2G17 Datasheet | 2025-12-07 |
