ET74LVC3G17
Contact
General Description

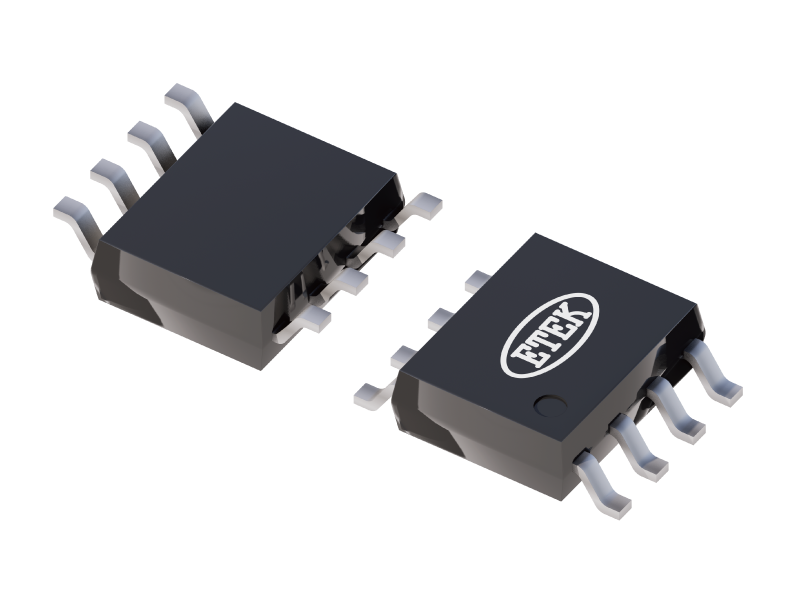

This triple schmitt-trigger buffer ET74LVC3G17 is designed for 1.65 V to 5.5 V VCC operation. The ET74LVC3G17 device contains three buffers and performs the Boolean function Y = A. The device functions as three independent buffers but, because of Schmitt action, it may have different input threshold levels for High Level Input Voltage (VOH) and Low-Level Input Voltage (VOL) signals. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current back flow through the device when it is powered down. ET74LVC3G17 are available in the SOP8 and TSSOP8 packages.
Specification
Sample
Features
- Wide Supply Voltage Range from 1.65V to 5.5V
- 5V Tolerant Input/Output for Interfacing with 5V Logic
- ± 24mA Output Drive at 3.0V
- CMOS Low Power Consumption
- Direct Interface with TIL Levels
- Specified from -40°C to +125°C
- Latch-Up Performance 100mA Per JESD 78
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC3G17 Datasheet | 2025-12-07 |
