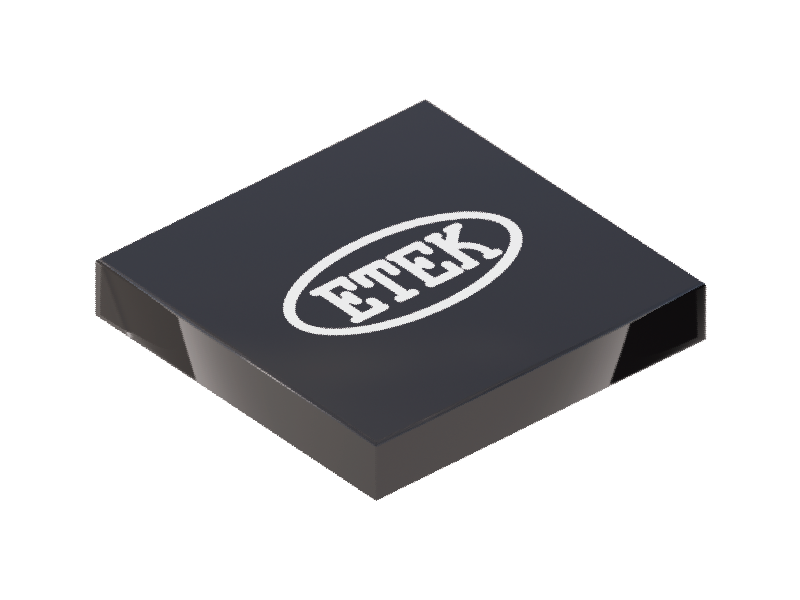

ET74AHCT1G08
Contact
General Description
The ET74AHCT1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function Y = A • B or Y = (A+B) in positive logic. Low ICC current allows this device to be used in power-sensitive or battery-powered applications.
Specification
Sample
Features
- Operating Range: 4.5 V to 5.5 V
- Maximum tpd of 7.1 ns at 5 V
- Low Power Consumption: Maximum ICC of 10 µA
- ±8 mA Output Drive at 5 V
- Inputs are TTL-Voltage Compatible
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74AHCT1G08 Datasheet | 2025-11-07 |
