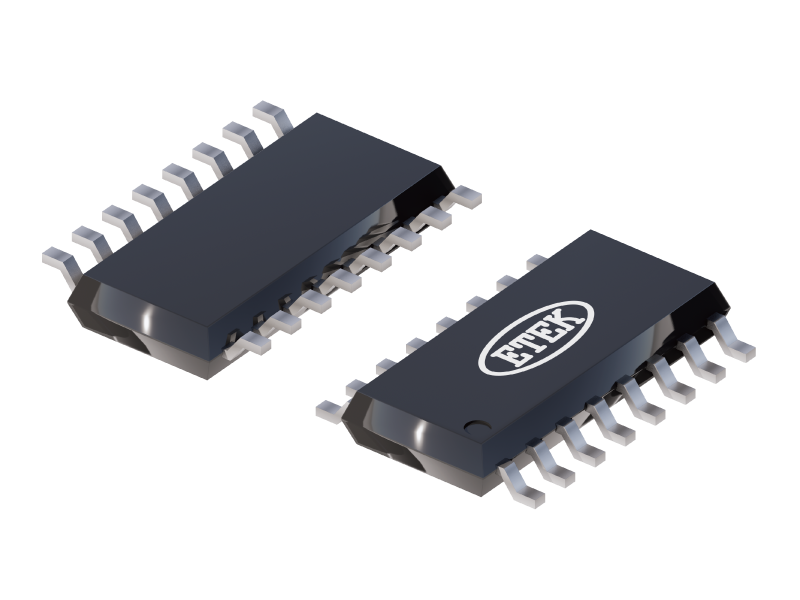

ET74HC86
Contact
General Description
This device contains four independent 2-input XOR gates. Each gate performs the Boolean function Y = A ⊕ B in positive logic.
Specification
Sample
Features
- Buffered Inputs: CMOS Level
- Wide Operating Voltage Range: 2 V to 6 V
- Wide Operating Temperature Range: -40°C to +125°C
- Supports Fan-Out Up to 10 LSTTL Loads
- Significant Power Reduction Compared to LSTTL Logic ICs
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74HC86 Datasheet | 2025-12-07 |
