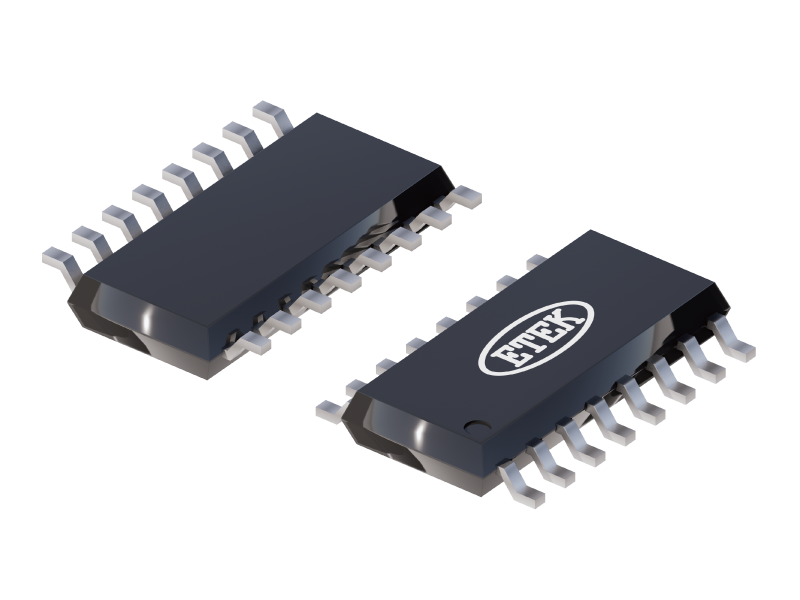

ET74HCT86
Contact
General Description
This device contains four independent 2-input XOR gates. Each gate performs the Boolean function Y = A ⊕ B in positive logic.
Specification
Sample
Features
- Buffered Inputs: TTL Level
- Wide Operating Voltage Range:4.5 V to 5.5 V
- Wide Operating Temperature Range: -40°Cto +125°C
- Supports Fan-Out Up to 10 LSTTL Loads
- Significant Power Reduction Compared to LSTTL Logic ICs
- Latch-up Performance Exceeds 200 mA
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74HCT86 Datasheet | 2025-11-15 |
