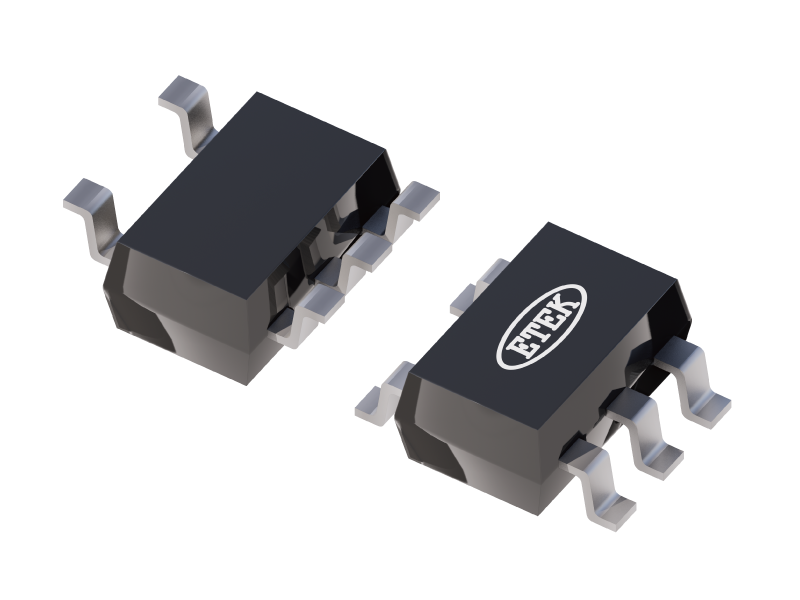

ET74LVC1G02
Contact
General Description
The ET74LVC1G02 is a high performance single 2−input NOR Gate operating from a 1.65V to 5.5V supply. This device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- Over−Voltage Tolerant Inputs and Outputs
- 24mA Sink and Source Output Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb−Free and are RoHS Compliant
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G02 Datasheet | 2025-12-07 |
