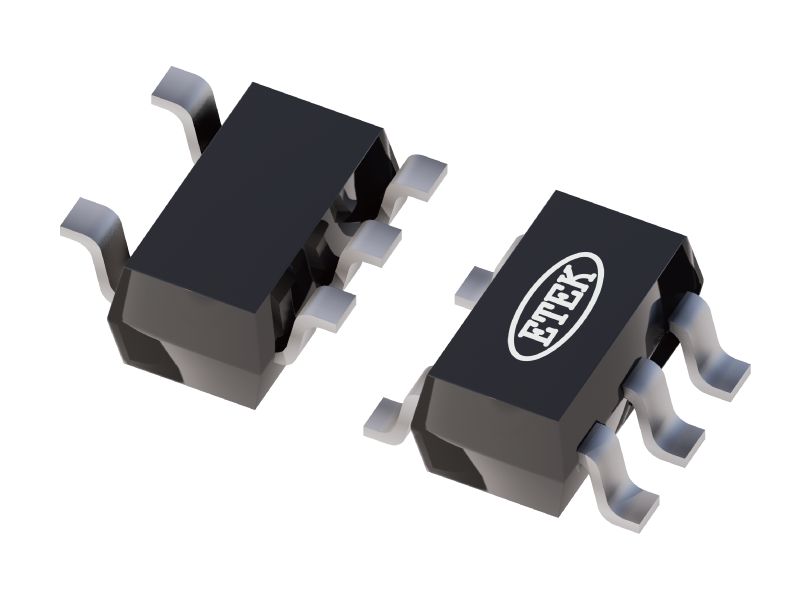

ET74LVC1G19
Contact
General Description
The ET74LVC1G19 is a high−performance non−inverting 1−to−2 demultiplexer. With the Select input [S] at Low, data at A is passed to Y0 and Y1 is set to high impedance. With the Select input [S] at High, data at A is passed to Y1 and Y0 is set to high impedance. The device operates over the voltage range from 1.65V to 5.5V. This device has been optimized for on−board buffering applications and offers mixed (1.65V, 2.3V, 3.0V and 5.5V) voltage capability by providing over voltage tolerance (OVT) circuitry on I/O pins.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- High−Speed Propagation Delay tPD 2.5nS (Typ)@3.3V, Load 50pF
- Power Down Impedance Outputs in High−Z
- Output Drive Capability 32mA
- These Devices are Pb−Free and are RoHS Compliant
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G19 Datasheet | 2025-11-15 |
