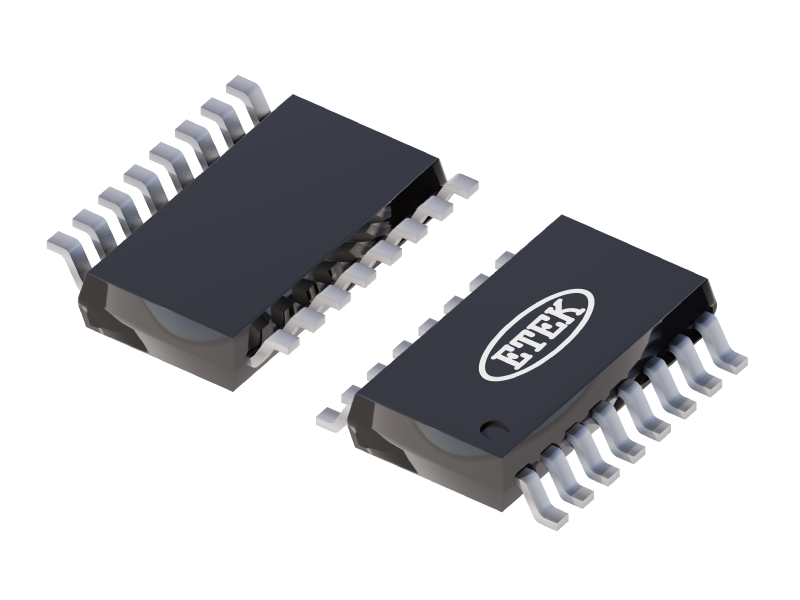

ET48752
Contact
General Description
The ET48752 is a CMOS analog multiplexer which consists of two 4-channel multiplexers. It operates from 2.5V to 5.5V single power supply and all digital inputs support 1.8V logic control. The ET48752 features low voltage, low on-resistance and low off-leakage current. The high performances make it very suitable for multiple applications, such as cellular phones, audio and video signal routing, etc. The ET48752 is available in Green QFN16, TSSOP16 and SOP16 packages. It operates over an ambient temperature range of -40℃ to +85℃.
Specification
Sample
Features
- Single Supply Voltage Range: 2.5V to 5.5V
- On-Resistance: 44Ω(TYP) with 5V Supply
- Internal A, B Rise Time: 45ns (TYP), VCC = 5V
- Internal A, B Fall Time: 50ns (TYP), VCC = 5V
- 1.8V Logic Compatible
- Low On-Resistance Flatness
- Low Crosstalk: -90dB (f = 1MHz)
- High Off-Isolation: -85dB (RL = 50Ω, f = 1MHz)
- Low Distortion: 0.7% (RL = 600Ω, f = 20Hz to 20kHz)
- -40°C to +85°C Operating Temperature Range
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET48752 Datasheet | 2025-11-10 |
