ET5224Y
Contact
General Description

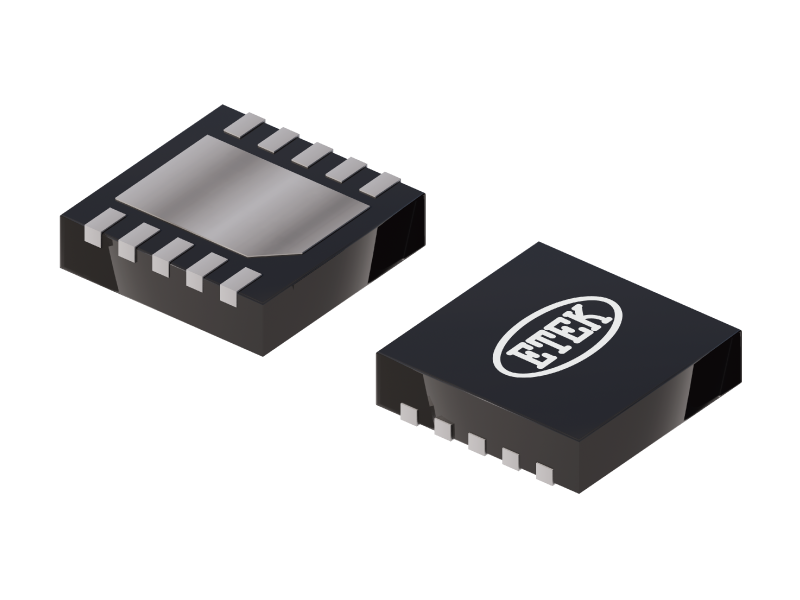

The ET5224Y is an advanced CMOS analog switch fabricated in Sub-micron silicon gate CMOS technology. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. ET5224 is offered DFN10 package, which is ideal for small form factor portable equipment.
Specification
Sample
Features
- Single Supply Operation from 1.8 to 5.5 V
- Ultra−Low RON : 0.5Ω (Typical) @ VCC =4.3V
- Flatness of RON : 0.15Ω (Typical)
- −3dB Bandwidth : 30MHz
- Full 0 to VCC Signal Handling Capability
- Low Crosstalk : 83dB at 100kHz
- High Off−Channel Isolation: -65dB at 100kHz
- Low Standby Current < 50nA
- Low Distortion ：THD < 0.14%
- High Continuous Current Capability: ±300mA Through Each Switch
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET5224Y Datasheet | 2025-11-10 |
