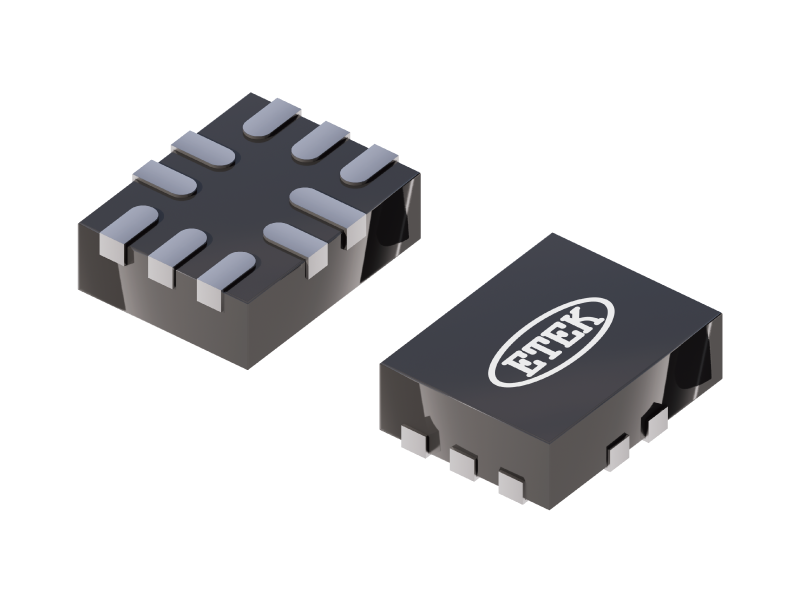

ET5228H
Contact
General Description
The ET5228H is an advanced CMOS analog switch fabricated in Sub−micron silicon gate CMOS technology. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. The switches can handle negative signal down to -2.5V. ET5228H is offered in a small QFN10L package, which is ideal for small form factor portable equipment.
Specification
Sample
Features
- Low RON is typical 0.6Ω @ VCC =3.3V
- Single supply operation from 1.65V to 5.5V
- Full -2.5V to VCC signal handling capability
- High off-channel isolation
- Very low standby current
- Very low distortion
- Break-Before-Make(BBM) switching
- High continuous current capability is ±300mA through each switch
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET5228H Datasheet | 2025-11-15 |
