ET7229
Contact
General Description

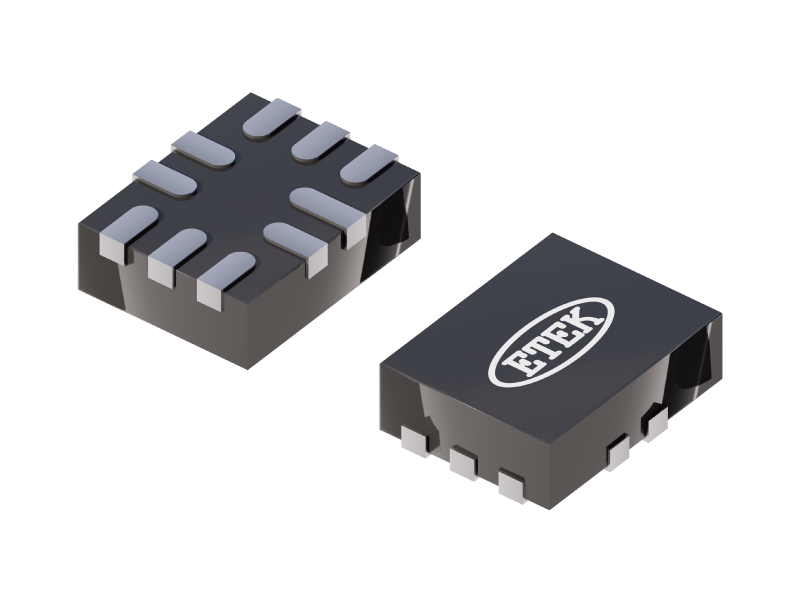

The ET7229 is a double-pole/double-throw (DPDT) switches. Their wide bandwidth and low bit-to-bit skew allow them to pass high-speed differential signals with good signal integrity. Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Industry-leading advantages include a propagation delay of less than 250 ps, resulting from its low channel resistance and low I/O capacitance. Their high channel-to-channel crosstalk rejection results in minimal noise interference. Their bandwidth is wide enough to pass High-Speed USB 2.0 differential signals (480 Mb/s). ET7229 is offered in a QFN10L package.
Specification
Sample
Features
- RON is typically 6.0 Ω @ VCC = 3.3 V
- Low Bit-to-Bit skew is typically 50 ps
- Low current consumption is 1.0 µA typical
- Near-zero propagation delay is typical 250 ps
- Channel on-capacitance is 4.0 pF typical
- VCC operating range from 1.65 V to 4.5 V
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET7229 Datasheet | 2025-11-10 |
