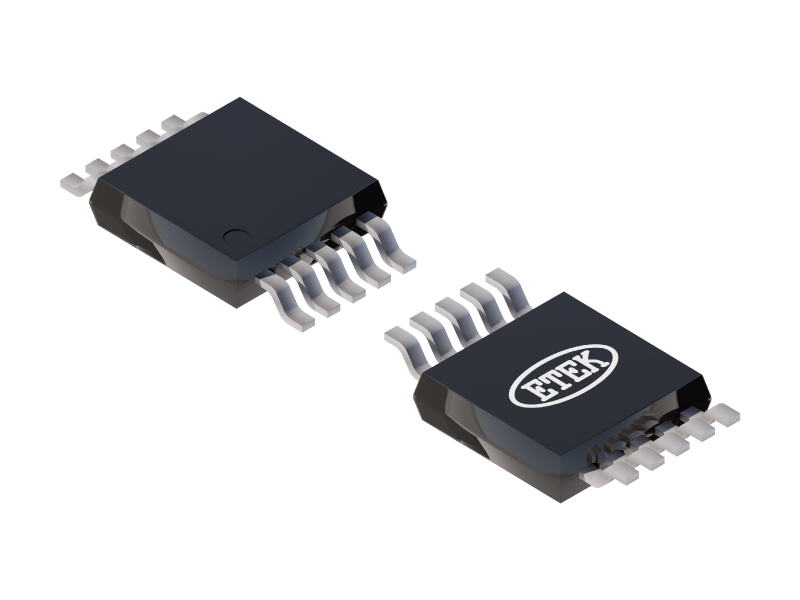

ETQ5228M
Contact
General Description
The ETQ5228M is an advanced CMOS analog switch fabricated in Sub−micron silicon gate CMOS technology. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. The switches can handle negative signal down to -2V.
Specification
Sample
Features
- Low RON is typical 0.4Ω @ VCC =4.3V
- Single supply operation from 1.8V to 5.5V
- Full -2 V to VCC signal handling capability
- High off-channel isolation
- Low standby current
- Low distortion
- Break-Before-Make(BBM) switching
- High continuous current capability is ±300mA through each switch
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ETQ5228M Datasheet | 2025-12-07 |
