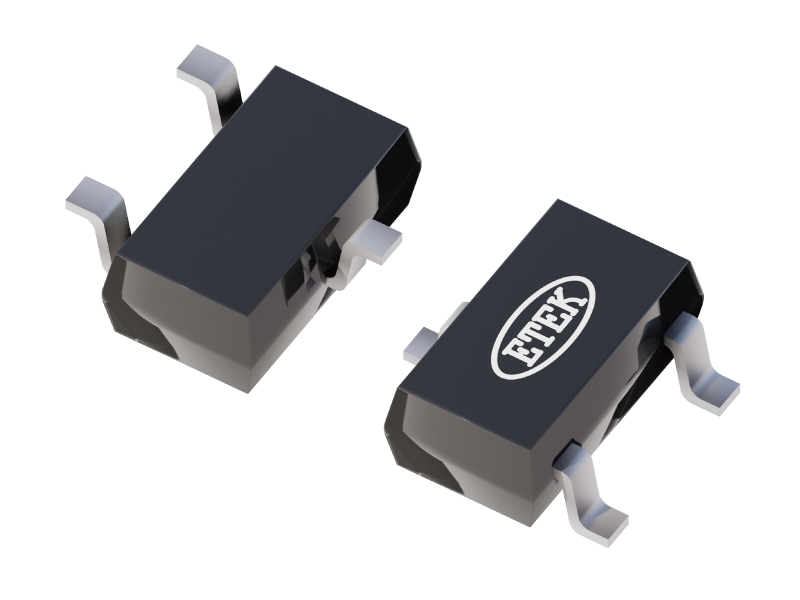

ET3712A30XXXXX
Contact
General Description
The ET3712A Series are a high sensitivity and high-accuracy Hall effect switch IC that operates at a low voltage and low current consumption. The output voltage will be pulled low when this IC detects the magnetic flux density is larger than operate point(BOP) and the output voltage will recover to high until the magnetic flux density is smaller than the release point(BRP). Using this IC with a magnet makes it possible to detect the open / close status in various applications.
Specification
Sample
Features
- Pole detection: Detection of Omnipolar, S pole or N pole
- Power supply voltage range: VDD = 1.6 V to 5.5 V
- Operation temperature range: TA = -40°C to +85°C
- Lead-free (Sn 100%), halogen-free packages
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET3712A30XXXXX Datasheet | 2025-12-07 |
