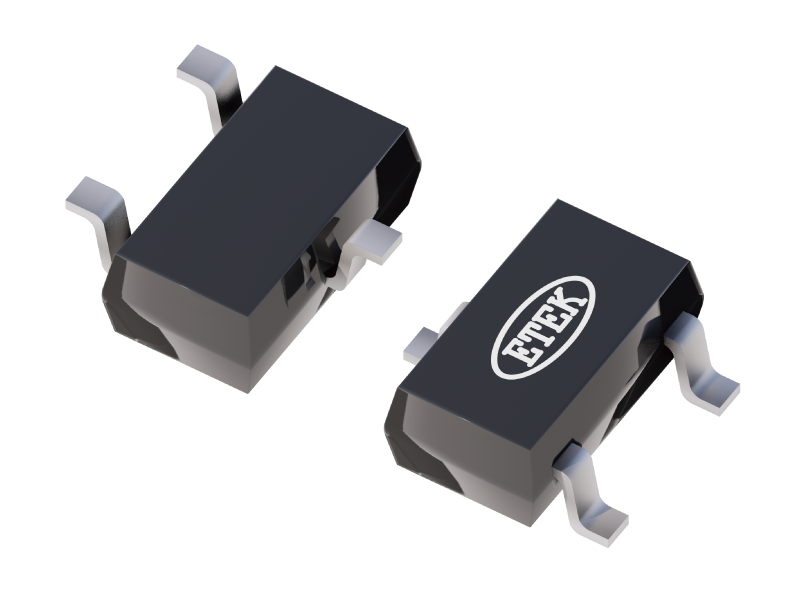

ET3712A45BDCLS
Contact
General Description
The ET3712A45BDCLS is a high sensitivity and high-accuracy Omnipolar detection Hall effect switch IC that operates at a low voltage and low current consumption. The output voltage will be pulled low when this IC detects the magnetic flux density is larger than operate point(BOPN/BOPS) and the output voltage will recover to high until the magnetic flux density is smaller than the release point(BRPN/BRPS). Using this IC with a magnet makes it possible to detect the open / close status in various applications.
Specification
Sample
Features
- Pole detection: Omnipolar pole
- Magnetic sensitivity: BOP = 4.5 mT typ.
- Power supply voltage range: VDD = 1.6 V to 5.5 V
- Operation temperature range: Ta = -40°C to +85°C
- Lead-free (Sn 100%), halogen-free
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET3712A45BDCLS Datasheet | 2025-12-07 |
