ET3712A45BSCLD
Contact
General Description
The ET3712A45BSCLD is a high sensitivity and high-accuracy S Pole detection Hall effect switch IC that operates at a low voltage and low current consumption. The output voltage will be pulled low when this IC detects the S Pole magnetic flux density is larger than operate point(BOPS) and the output voltage will recover to high until the S Pole magnetic flux density is smaller than the release point(BRPS). Using this IC with a magnet makes it possible to detect the open / close status in various applications.
Specification
Sample
Features
- Pole detection：S pole
- Output logic：Active low
- Operating Point：BOP = 4.5 mT typ.
- Current consumption：IDD = typ. 2.0 μA at 1.85 V
- Power supply voltage range：VDD = 1.6 V to 5.5 V
- Operation temperature range：TA = -40°C to +85°C
- Lead-free (Sn 100%), halogen-free

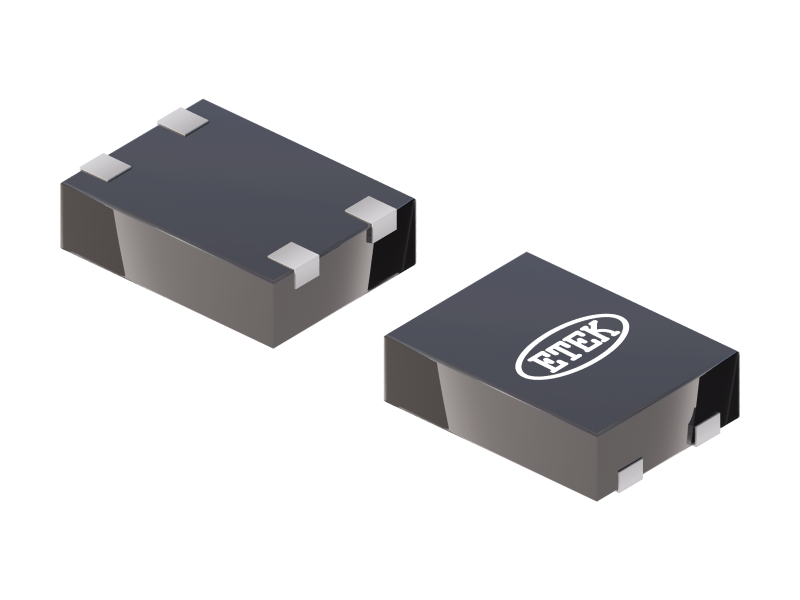

- Super small DFN4 package
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET3712A45BSCLD Datasheet | 2025-11-07 |
