ET64B16VAM
Contact
General Description
The ET64B16VAM is an AEC-Q100 Grade 1 certified 16-bit I²C I/O expander with wide voltage range (1.65V-5.5V) and automotive temperature range (-40°C to +125°C), ideal for automotive and harsh environment applications.
Specification
Sample
Features
- 1.65V to 5.5V Operating Voltage
- AEC-Q100 Grade 1 Certified
- 1.0uA Ultra-Low Standby Current
- Programmable Hardware Address
- 25mA Drive Capability per I/O

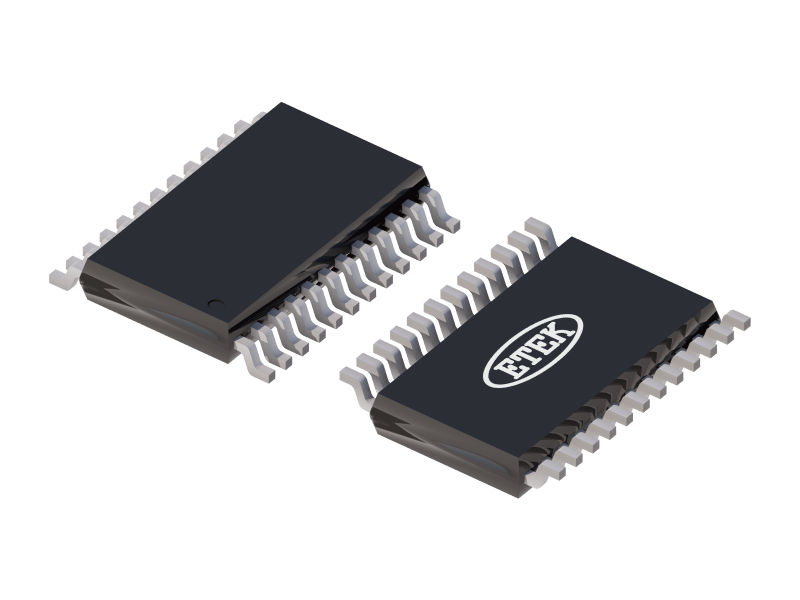

- package:TSSOP24 (7.8mm x 4.4mm )
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET64B16VAM Datasheet | 2025-11-15 |
