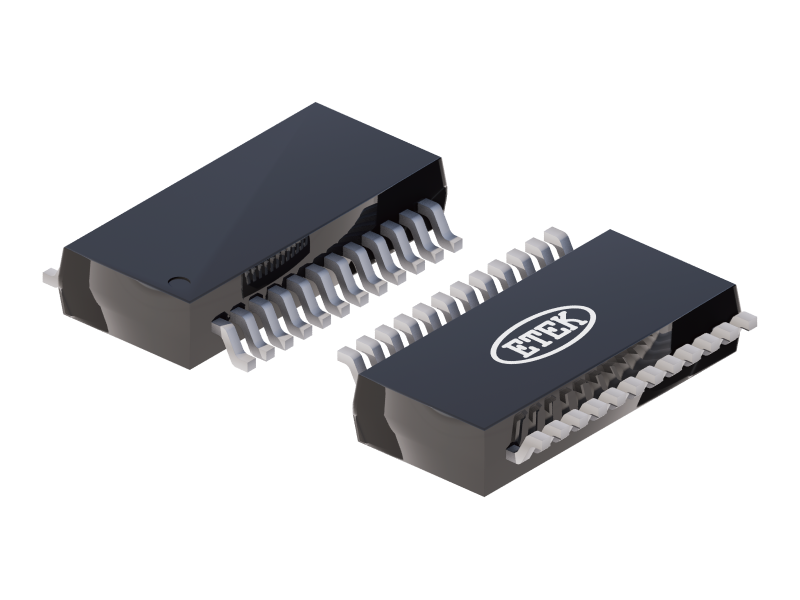

ET74LVCH8T245
Contact
General Description
The ET74LVCH8T245 is an 8-bit noninverting bus transceiver that uses two separate configurable power supply rails. The device is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs, the A-port outputs, or place both output ports into a high-impedance state. The control pins (DIR and OE) are referenced to VCCA.
Specification
Sample
Features
- Control Inputs (DIR and OE) VIH and VIL Levels are Referenced to VCCA
- Bus Hold on Data Inputs Eliminates the Need for External Pull-up and Pull-down Resistors
- VCC Isolation
- Fully Configurable Dual-Rail Design
- Ioff Supports Partial-Power-Down Mode Operation
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVCH8T245 Datasheet | 2025-11-10 |
